Introduction:
SINGHASINI RIBBON BLENDER are self contained, compact, dust tight blenders designed for fast mixing of powders. They are used in leading processing plants for mixing materials such as chemicals, foods, drugs, medicines, cosmetics, plastics, synthetics, dyes, fertilizers, insecticides, animal feeds, and many other products. Wherever light to medium mixing is required, there is a Singhasini Ribbon Blender which is ideal for the job.
Principle of Operation:
Materials with varying densities can be mixed thoroughly in a remarkable short time. Perfect distribution of even smallest quantities added is effected and final product homogeneity is assured. In addition to mixing, shearing action in the interface provides mild kneading. Designed in such a manner that outer ribbon conveys from end towards center, where as inner conveys from center towards end.
Rugged Construction:

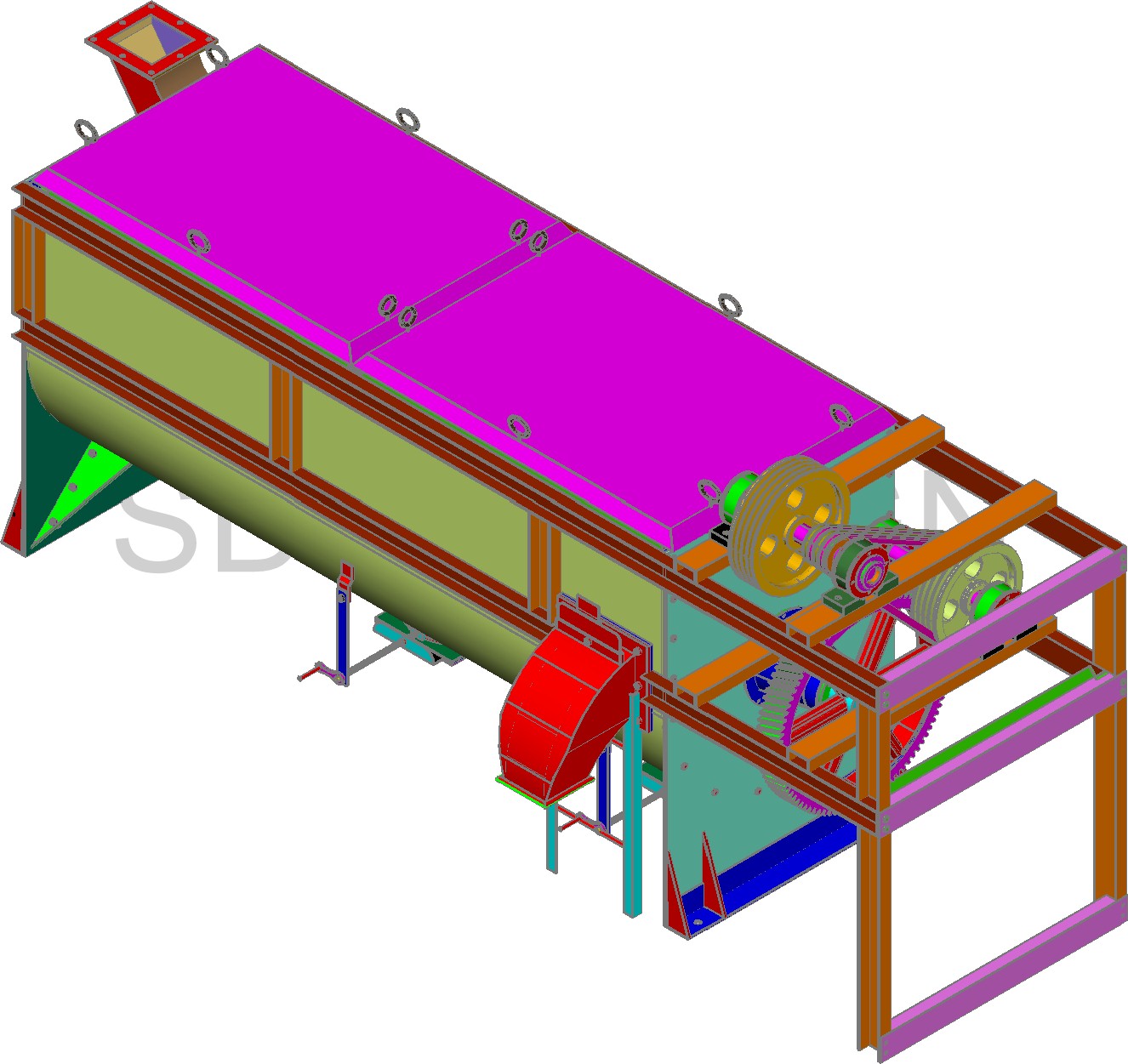

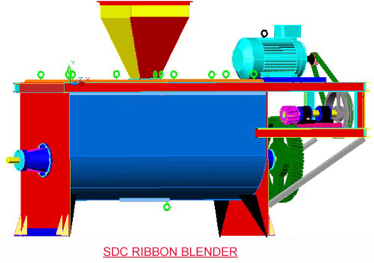

Fabricated out of heavy steel, or any specified material of construction. Design aspects planned for maximum efficiency in leak proof construction. It has fabricated ‘U’ trough having well aligned and balanced shaft which carries ribbons over it. The shaft running in UNI Block Bearing housing with heavy duty self aligning Ball/Roller Bearings fitted in dust proof housing, gland packing compact unit with built in drive arrangement/gear box as specified and supporting legs. Blenders are available from few liters to few thousand liters, tailor made designs are also available.
Ribbon Blender Specification
SL.NO. WORKING VOLUME (LTR.) FULL VOLUME (LTR.) WIDTH (MM) HEIGHT (MM) LENGTH (MM) MOTOR H.P. SPEED (RPM)
1 300 400 500 600 1500 3 to 5 56
2 500 750 600 750 1800 5 to 10 48
3 1000 1270 800 950 1800 7.5 to15 38
4 1500 1840 900 1050 2000 10 to 20 32
5 2000 2550 1050 1200 2000 15 to 30 28
6 3000 3340 1050 1200 3000 20 to 30 20
7 4500 5240 1350 1500 3000 30 to 50 24
8 5500 6650 1500 1650 3000 40 to 60 21
9 7000 8500 1500 1650 4000 40 to 60 18
10 8500 9900 1650 1800 4000 50 to 75 18
We have developed few special sizes which can be fitted directly under the cyclone of the Pulveriser for Continuous Blending specially for Pesticides Formulation.
NOTE : As improvements are made from time to time the specifications and dimensions given above are subject to change without notice.
Special Sizes
SL.NO. WORKING VOLUME (LTR.) FULL VOLUME (LTR.) WIDTH (MM) HEIGHT (MM) LENGTH (MM) MOTOR H.P. SPEED (RPM)
1 610 810 760 900 1800 7.5 to 10 45
2 900 1130 760 900 2500 10 to 15 45
3 1350 1700 760 900 3800 15 to20 45
