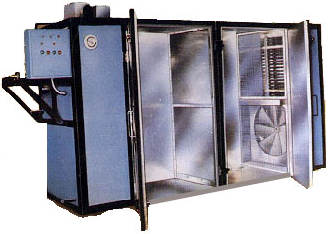

SINGHASINI Tray Dryer consists of rigid angle iron frame covered with heavily insulated glass wool on all sides to prevent heat losses from the dryer and mild steel sheet covering , provided with fresh air inlet & adjustable air outlet. The Dryer is finished internally with SS316 / SS304 or Aluminum sheet or heat resistant Aluminum paint to minimize heat losses . Heating is done with electrical heaters / steam heaters or indirect fired hot air generators to achieve required temperature . Cross flow air circulation is maintained in the dryer in such a way that hot air passes over the trays and through it on the sides where it is reheated and recirculated to continue the cycle. A part of air is bled off to reduce moisture content. SINGHASINI tray Dryers are available in 48 , 96 , 192 trays with Aluminum trays and M.S. trolleys . Explosion safety door is available for special application dryer . Dryer is provided with Pre-wired control panel consisting of Digital Temperature Controllers , Contactors , Over Current Relays , Fuses , Indicating Lamps , Push Buttons etc etc.
Tray Dryer Specification:
MODEL STD 48 STD 96 STD 192
Nos. Of Trays 48 96 192
Nos. Of Fans One Two Four
Nos.Of Motor / H.P. One/1.0 Two/2.0 Four/4.0
Heating Load 100 /150 Deg C 6/9 12/18 24/36
Nos. Of Doors One Two Two
Size Of Tray 32 x 16 x 1.25 32 x 16 x 1.25 32 x 16 x 1.25
Power Supply AC,3Ph,415V,50Hz AC,3Ph,415V,50Hz AC,3Ph,415V,50Hz
